Function Characteristics
1.Compared with S9,S11series transformer,the annual average no-load loss of S13 is reduced by 30%and the average load loss is reduced by 20%.At the same time,it saves energy obviously.
2.S13 series has the complete symmetry tri-phased iron core magnetic circuit,which greatly reduces the magnetic resistance and no-load loss,and thus,though adopting the traditional materials,which is more high efficient and energy saving,producing smaller noise and with more compact structure.

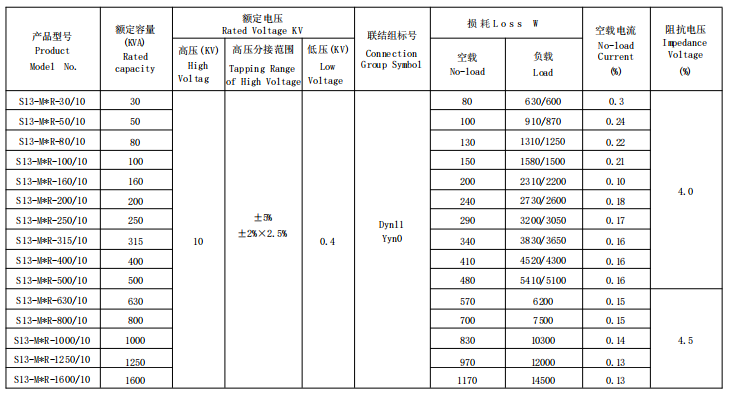

Technical Parameter of S13 series ofThree-phase oilImmersed Transformers
Notes: The Dimension and weight willbe changed according to the requirements.These two data in the table will be subject to the factory documents.
